Next generation class B AIS transponder, setting new standard for quality, performance, and value.
- 通過完整認證的高效能 B 類 AIS 應答器
- NMEA 2000、NMEA 0183 和 USB 連接
- 支援SD數據記錄卡插槽
- 支援 NMEA 2000 和 NMEA 0183 雙 GPS 備份
- 堅固時尚的外殼設計
- 可設定不發射模式（Tx 關閉）選項操作
CAMINO-108
2W AIS B 類收發器
SKU 部件號碼：:AMEC-B108-140
概述
高度可靠 B 級 AIS，值得信賴
CAMINO-108 系列代表了我們全球認可的 CSTDMA B 類收發器，其核心是先進的軟體定義無線電技術。
真實強大的 AIS 保障您的安全
其強大的傳輸和接收性能確保您即使在繁忙的海域也能看到其他船隻並被他們看到。綻放的 AIS 性能封裝在緊湊的外殼中，使 CAMINO-108 系列成為世界上最小的 AIS B 級，安裝輕鬆愉快。
支援雙 GPS 備份
CAMINO-108 系列可與來自 NMEA 2000 和 NMEA 0183 的 GPS 輸入搭配使用，以支援您的外部 GPS 天線。 「雙 GPS 備份」主動確保 AIS 應答器的定位和傳輸。
多功能連接，輕鬆整合
Camino-108 採用防水 NMEA2000、NMEA0183 和 USB 端口，可與海圖機、MAC 和 PC 輕鬆整合。其內建的 SD 卡插槽使 AIS 資料的儲存比以往更加容易。 AMEC AIS 設定工具可輕鬆為 Windows 和 Mac 使用者設定船舶靜態資料，並提供各種用於診斷和安裝故障排除的工具。
內建強大的 72 通道GNSS 接收器
此AIS 收發器配備 72 通道高速 GNSS 接收器。預設支援GPS和Galileo，可選配北斗和GLONASS。
規格
|
APPLICABLE STANDARDS |
|
|---|---|
|
IEN 301 489-1 V2.1.0 / EN 301 489-3 V2.1.0 |
ITU-R M.1371-5:2014 |
|
EN 301 489-1 V2.1.0 / EN 301 489-17 V3.1.0 |
IEC 60945 Ed. 4:2002 |
|
EN 301 843-1 V2.1.1 / EN 301 843-2 V2.1.1 |
IEC 61108-1 Ed. 2:2003 |
|
EN 300 440 V2.1.1 |
IEC 62287-1 Ed. 3:2017 |
|
EN 62368-1:2014 + A11:2017 |
EN 62311:2008 |
|
EN 300 328 V2.1.0 |
|
|
VHF TRANSCEIVER |
|
|
Frequency Range |
156.025 MHz ~ 162.025 MHz |
|
Channel Bandwidth |
25 KHz |
|
Modulation |
GMSK / FM |
|
Data Rate |
9,600 bps |
|
Number of AIS Transmitter |
1 |
|
Number of AIS Receiver |
2 (one time-shared between AIS and DSC) |
|
Number of DSC Receiver |
1 (time-shared between AIS and DSC) |
|
AIS Channel 1 |
CH 87B (161.975 MHz) |
|
AIS Channel 2 |
CH 88B (162.025 MHz) |
|
Tx Power Output |
2 Watt (33 dBm ± 1.5 dB) |
|
Rx Sensitivity |
< -107 dBm @ 20% PER |
|
DSC RECEIVER |
|
|
Modulation |
1,300 Hz / 2,100 Hz FSK |
|
Data Rate |
1,200 bps ± 30 ppm |
|
Spurious Response Rejection |
≧ 70 dB for signal @ -104 dBm; BER ≦ 1 % |
|
Blocking |
≧ 84 dB for signal @ -104 dBm; BER ≦ 1 % |
|
GNSS RECEIVER (integrated) |
|
|
Receiving Channels |
72 channels |
|
Accuracy |
IEC 61108-1 compliant |
|
GNSS support: GPS & GLONASS (factory default) |
|
|
ENVIRONMENTAL |
|
|
Operating Conditions |
IEC 60945 “protected” category |
|
Operating Temperature |
-15°C ~ +55°C (+5°F ~ +130°F) |
|
Waterproof |
IP2X |
|
LED INDICATION |
|
|
Power (green) |
System power on / off |
|
Error (red) |
MMSI not set / BIIT error |
|
Rx (green) |
Receiving AIS data |
|
Tx/Silent (green/red) |
Transmitting AIS data / Silent mode |
|
SD (green) |
Accessing SD card |
|
CONNECTION INTERFACE |
|
|
GPS Antenna Connector |
TNC (Female) |
|
VHF Antenna Connector |
SO-239 (Female) |
|
NMEA2000 |
Standard connector |
|
NMEA 0183 (RS-422) |
Support two NMEA0183 interfaces Baud rate configurable (default 38,400 bps) Separate Tx/Rx baud rate Standard IEC 61162-1 / IEC 61162-2 sentences |
|
Silent Mode Setting |
Set by dedicated pins in NMEA0183 connector |
|
USB |
Mini type, waterproof |
|
POWER SUPPLY |
|
|
Supply Voltage |
12V / 24V DC |
|
Power Consumption |
Typically less than 3W average @ 12V DC |
|
PHYSICAL |
|
|
Width |
128 mm (5.03 inch) |
|
Height |
36 mm (1.40 inch) |
|
Depth (include connectors) |
88 mm (3.46 inch) (exclude connector) |
|
Weight |
250 g |
|
SOFTWARE TOOL |
|
|
AMEC AIS Configuration |
PC configuration utility |

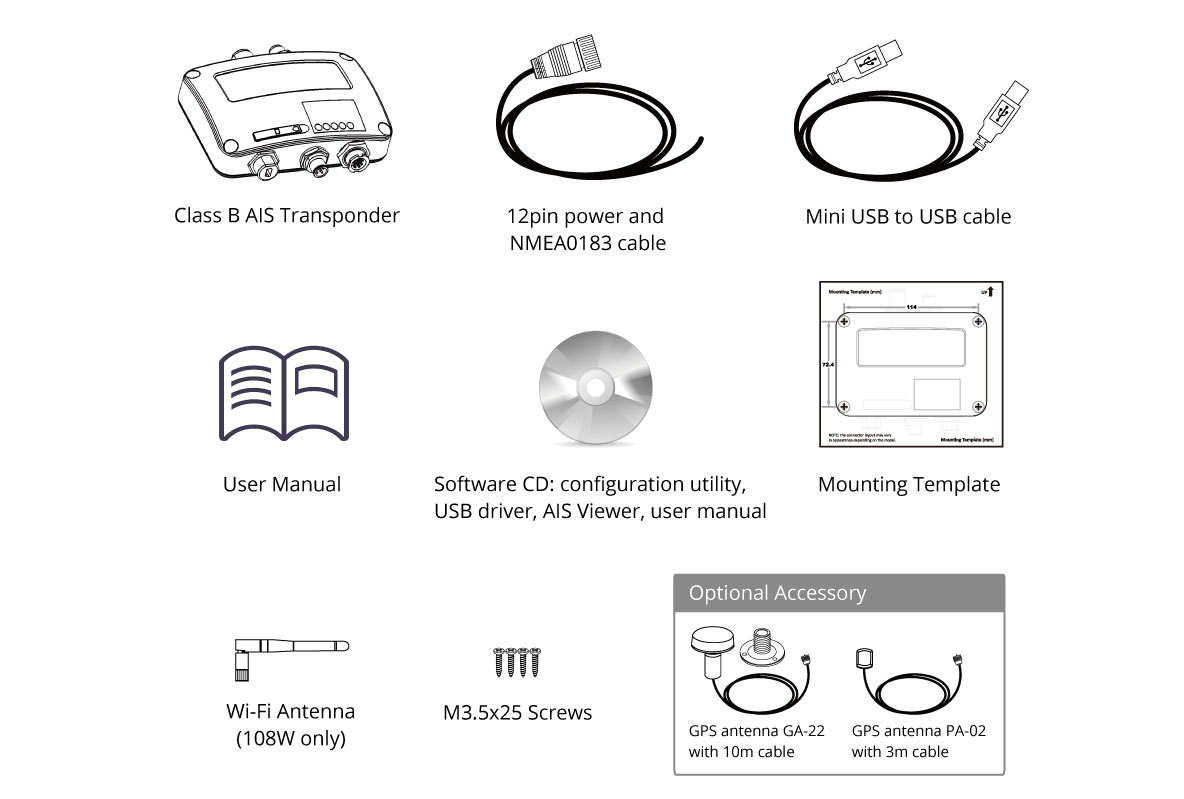

產品內容
下載
Documents
| DESCRIPTION | UPDATE |
|---|---|
| AIS Class B CAMINO-108 product brochure v2.3 | 2016/12/07 |
| Declaration of EU Conformity for CAMINO-108/108W/108S | 2020/12/30 |
| CAMINO-108 Manual V1.42 | 2020/12/30 |
| Connecting your Transponder to Macintosh Installation Guide | 2016/04/01 |
Software
| DESCRIPTION | UPDATE |
|---|---|
| AIS_ClassB_Configuration_Tool_v3.73 (Win10/11) | 2025/09/01 |
| AIS_ClassB_Configuration_Tool_v3.73 (Win7) | 2025/09/01 |
| AIS_ClassB_Configuration_Tool_v3.73 (MacOS) | 2025/09/01 |
| AIS ClassB Firmware V1.2.8.14 | 2025/08/27 |
| CAMINO-108 USB Driver | 2018/06/20 |
