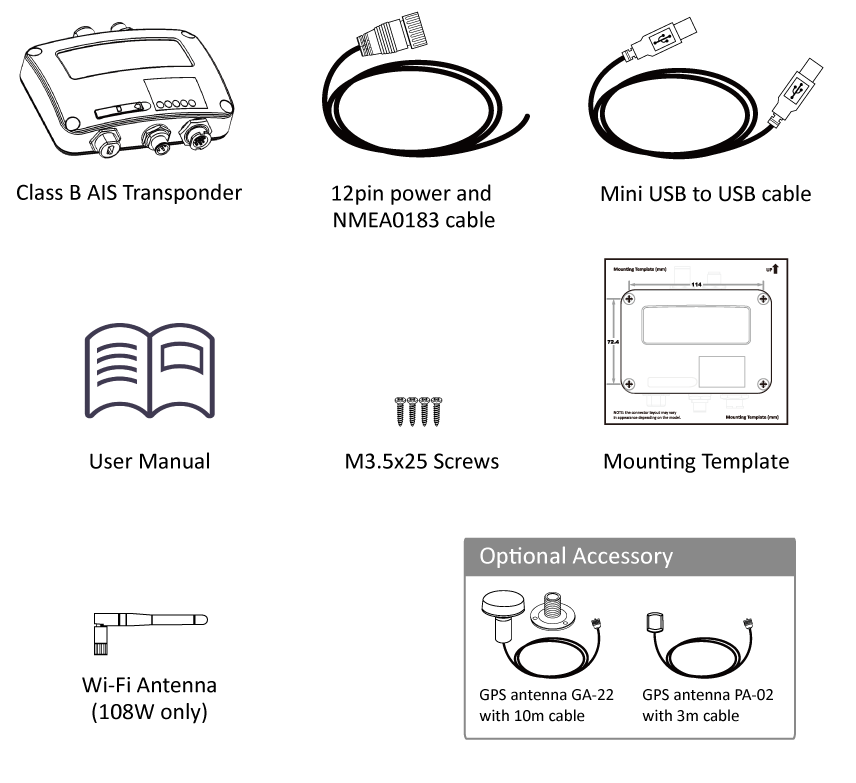

2W AIS class B transceiver
Next generation class B AIS transponder, setting new standard for quality, performance, and value.
SKU Part Number：:AMEC-B108-140
The CAMINO-108 series represents our globally approved CSTDMA class B transceivers with the core of sophisticated software defined radio technology.
Its robust transmission and reception performance makes sure that you can see other vessels and be seen by them even in a busy sea area. The unleashed AIS performance is packed in a compact housing to make CAMINO-108 series the smallest AIS Class B of the world for easy and pleasant installation.
CAMINO-108 series works with GPS input from both NMEA 2000 and NMEA 0183 to back up your external GPS antenna. The “Dual GPS Backup” actively ensures the positioning and transmission of your AIS transponder.
Camino-108 incorporates waterproof NMEA2000, NMEA0183 and USB port to enable simple integration with chart plotters, MAC and PC. Its built-in SD card slot makes storage of AIS data easier than ever. The AMEC AIS configuration tool enables an easy setup of vessel static data for Windows and Mac users and offers a variety of tools for diagnosis and installation troubleshooting.
The AIS transceiver is equipped with 72-channel high speed GNSS receiver. It supports GPS and Galileo by default and optional BeiDou and GLONASS.
|
APPLICABLE STANDARDS |
|
|---|---|
|
IEN 301 489-1 V2.1.0 / EN 301 489-3 V2.1.0 |
ITU-R M.1371-5:2014 |
|
EN 301 489-1 V2.1.0 / EN 301 489-17 V3.1.0 |
IEC 60945 Ed. 4:2002 |
|
EN 301 843-1 V2.1.1 / EN 301 843-2 V2.1.1 |
IEC 61108-1 Ed. 2:2003 |
|
EN 300 440 V2.1.1 |
IEC 62287-1 Ed. 3:2017 |
|
EN 62368-1:2014 + A11:2017 |
EN 62311:2008 |
|
EN 300 328 V2.1.0 |
|
|
VHF TRANSCEIVER |
|
|
Frequency Range |
156.025 MHz ~ 162.025 MHz |
|
Channel Bandwidth |
25 KHz |
|
Modulation |
GMSK / FM |
|
Data Rate |
9,600 bps |
|
Number of AIS Transmitter |
1 |
|
Number of AIS Receiver |
2 (one time-shared between AIS and DSC) |
|
Number of DSC Receiver |
1 (time-shared between AIS and DSC) |
|
AIS Channel 1 |
CH 87B (161.975 MHz) |
|
AIS Channel 2 |
CH 88B (162.025 MHz) |
|
Tx Power Output |
2 Watt (33 dBm ± 1.5 dB) |
|
Rx Sensitivity |
< -107 dBm @ 20% PER |
|
DSC RECEIVER |
|
|
Modulation |
1,300 Hz / 2,100 Hz FSK |
|
Data Rate |
1,200 bps ± 30 ppm |
|
Spurious Response Rejection |
≧ 70 dB for signal @ -104 dBm; BER ≦ 1 % |
|
Blocking |
≧ 84 dB for signal @ -104 dBm; BER ≦ 1 % |
|
GNSS RECEIVER (integrated) |
|
|
Receiving Channels |
72 channels |
|
Accuracy |
IEC 61108-1 compliant |
|
GNSS support: GPS & GLONASS (factory default) |
|
|
ENVIRONMENTAL |
|
|
Operating Conditions |
IEC 60945 “protected” category |
|
Operating Temperature |
-15°C ~ +55°C (+5°F ~ +130°F) |
|
Waterproof |
IP2X |
|
LED INDICATION |
|
|
Power (green) |
System power on / off |
|
Error (red) |
MMSI not set / BIIT error |
|
Rx (green) |
Receiving AIS data |
|
Tx/Silent (green/red) |
Transmitting AIS data / Silent mode |
|
SD (green) |
Accessing SD card |
|
CONNECTION INTERFACE |
|
|
GPS Antenna Connector |
TNC (Female) |
|
VHF Antenna Connector |
SO-239 (Female) |
|
NMEA2000 |
Standard connector |
|
NMEA 0183 (RS-422) |
Support two NMEA0183 interfaces Baud rate configurable (default 38,400 bps) Separate Tx/Rx baud rate Standard IEC 61162-1 / IEC 61162-2 sentences |
|
Silent Mode Setting |
Set by dedicated pins in NMEA0183 connector |
|
USB |
Mini type, waterproof |
|
POWER SUPPLY |
|
|
Supply Voltage |
12V / 24V DC |
|
Power Consumption |
Typically less than 3W average @ 12V DC |
|
PHYSICAL |
|
|
Width |
128 mm (5.03 inch) |
|
Height |
36 mm (1.40 inch) |
|
Depth (include connectors) |
88 mm (3.46 inch) (exclude connector) |
|
Weight |
250 g |
|
SOFTWARE TOOL |
|
|
AMEC AIS Configuration |
PC configuration utility |
|
AMEC AIS Viewer |
AIS Viewer for PC |
| DESCRIPTION | UPDATE |
|---|---|
| AIS Class B CAMINO-108 product brochure v2.3 | 2016/12/07 |
| Declaration of EU Conformity for CAMINO-108/108W/108S | 2020/12/30 |
| CAMINO-108 Manual V1.42 | 2020/12/30 |
| Connecting your Transponder to Macintosh Installation Guide | 2016/04/01 |
| DESCRIPTION | UPDATE |
|---|---|
| AIS_ClassB_Configuration_Tool_v3.72 | 2024/10/22 |
| AIS ClassB Firmware V1.2.8.13 | 2025/02/18 |
| CAMINO-108 USB Driver | 2018/06/20 |
