具有 AIS 功能的精準海圖裝置
通過全球認證含顯示幕的 5W SOTDMA B 類 AIS
SKU 部件號碼：AMEC-P200SO-013
P200-SO是一款經過全球認證的海圖機，整合了5W B類 AIS。它具有強大的製圖引擎、直覺的用戶介面和先進的導航功能，可增強安全性並讓您輕鬆航行。 P200的硬體具有IP67防水等級和符合人體工學的接口，確保在惡劣的海洋環境中仍能可靠運作。
P200-SO 採用了與 A 類 AIS相同的 SOTDMA 技術。這種自組式傳輸機制允許該系統與傳輸範圍內的其它 AIS 設備能協商定期傳輸時隙，即使在高AIS流量區域，也能提供比標準 2W B 類 AIS 高達六倍的報告頻率。
如果發生潛在碰撞或人員落水情況，P200 會即時發出警報。輕鬆存取 SRM 警報訊息，即可概覽船舶周圍的危險和遇險情況。發布 MOB 警報後，P200 可讓您輕鬆定位和追蹤訊號，即時提供連續的方位和距離資訊。
P200 具有強固外殼，支持 IPx7 防水等級和海事等級的連接器。其對衝擊和溫度變化的穩固性非常適合惡劣的海洋環境。透過 P200 的多點觸控螢幕和鍵盤進行操作，即使濕手也能確保可靠性。
AIS 收發器配備 72 通道高速 GNSS 接收器。預設支援GPS和Galileo，可選配北斗和GLONASS。
|
APPLICABLE STANDARDS |
|
|---|---|
|
IEC 60945 Ed. 4.0 (2002-08) incl. Cor. 1 (2008-04) |
EN 303 413 V1.1.1 (2017-06) |
|
IEC 62287-1 Ed. 3.0 (2017-04) (P200-CS) |
EN 301 489-1 V2.1.1 (2017-02) |
|
IEC 62287-2 Ed. 2.0 (2017-02) (P200-SO) |
EN 301 489-17 V3.1.1 (2017-02) |
|
IEC 61108-1 Ed. 2.0 (2003-07) |
EN 301 489-19 V2.1.1 (2019-04) |
|
ITU-R M.1371-5 (2014-02) |
EN 301 843-1 V2.2.1 (2017-11) |
|
EN 300 328 V2.2.2 (2019-07) |
EN 62311 Ed. 1.0 (2008-01) |
|
EN 62368-1 Ed. 2.0 (2014-08) + A11 (2017-11) |
|
|
AIS TRANSCEIVER |
|
|
Frequency Range |
156.025 MHz ~ 162.025 MHz |
|
Access Scheme |
SOTDMA |
|
Channel Bandwidth |
25 KHz |
|
Modulation |
GMSK / FM |
|
Data Rate |
9,600 bps |
|
Number of AIS Transmitter |
1 |
|
Number of AIS Receiver |
2 (one time-shared between AIS and DSC) |
|
Number of DSC Receiver |
1 (time-shared between AIS and DSC) |
|
AIS Channel 1 |
CH 87B (161.975 MHz) |
|
AIS Channel 2 |
CH 88B (162.025 MHz) |
|
Tx Power Output |
5 Watt (37 dBm ± 1.5 dB 1 Watt (30 dBm ± 1.5 dB) |
|
Rx Sensitivity |
< -107 dBm @ 20% PER |
|
DSC RECEIVER |
|
|
Modulation |
1,300 Hz / 2,100 Hz FSK |
|
Data Rate |
1,200 bps ± 30 ppm |
|
GPS RECEIVER (INTEGRATED) |
|
|
Receiving Channels |
50 channels |
|
Accuracy |
IEC 61108-1 compliant |
|
Output Rate |
1 Hz |
|
Time to First Fix |
< 60 s |
|
LCD DISPLAY |
|
|
Display Size |
7 inches |
|
Screen Brightness |
1024x600 |
|
Display Resolution |
850 nits |
|
Viewing Angles |
typ./ min. 85°/ 80° top/bottom, typ./ min. 85°/ 80° left/right |
|
Backlight Color |
White LED |
|
POWER SUPPLY |
|
|
Power Input / Current (max) |
12-24 VDC / 2.3-1.1A max |
|

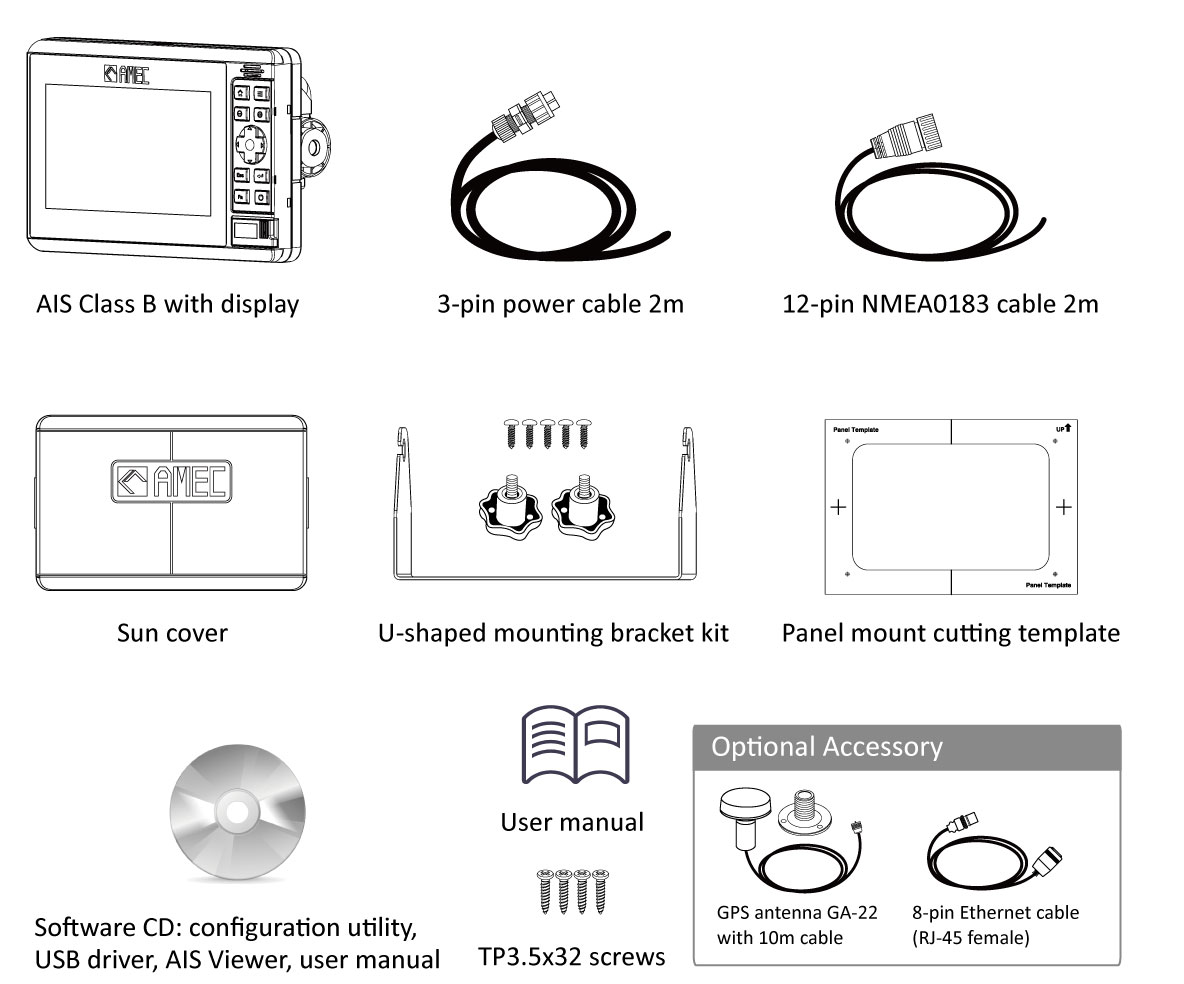

CONNECTION INTERFACE |
|
|
VHF Antenna Connector |
SO-239 (female) |
|
GPS Antenna Connector |
TNC (Female) |
|
NMEA 0183 Connector |
12 pins (with 8 wires connecting to external device) |
|
NMEA 2000 Connector |
5 pins, standard connector LEN=1 |
|
Ethernet Port (Optional) |
8 pins (with a cable connecting to RJ45 connector) |
|
Power Connector |
3 pins |
|
KEYPAD & SD CARD |
|
|
Power On/Off Key |
A dedicated keypad for power on/off |
|
Keypad |
Home, Menu, Room-in, Room-out, Esc, Enter, Func, Power, Up-down-left-right |
|
Micro-SD Card |
Support two micro-SD cards, one for C-Map charts, one for firmware upgrade |
|
ENVIRONMENTAL |
|
|
Operating Conditions |
IEC 60945 “protected” category |
|
Operating Temperature |
-15 °C ~ +55 °C |
|
Storage Temperature |
-30 °C ~ +70 °C |
|
Humidity |
93 % relative humidity (RH) for 10 hours @40 °C |
|
Compass Safe Distance |
0.55 m (standard-magnetic) 0.45 m (steering-magnetic) |
| Waterproof | IP67 with card door closed |
|
PHYSICAL |
|
|
Width |
233.63 mm (9.20 inches) |
|
Height (Main Unit) |
150.00 mm (5.91 inches) |
|
Depth |
77.56 mm (3.05 inches) (exclude connector) |
|
Weight |
1,045 g (without Ethernet connector) |
|
Wi-Fi (OPTIONAL) |
|
|
Tx Transmit Power |
18 dBm (EIRP) |
|
Frequency Range |
2,412 MHz ~ 2,472 MHz |
|
Wi-Fi Antenna |
Balance Flex Antenna with 2.8 dBi |
