PLOMO-500

Safety Tech can be Simple But Smart.

It allows the rescue team to locate the survivors rapidly through broadcasted AIS information and, ultimately, gives a better chance to survive.



  • Innovative AIS technology, a replacement of Radar SART
  • Rugged and compact design
  • Buoyant / floatable and waterproof to 10m
  • Fluorescent backlight panel
  • SOS LED light
  • Easy to assemble and carry

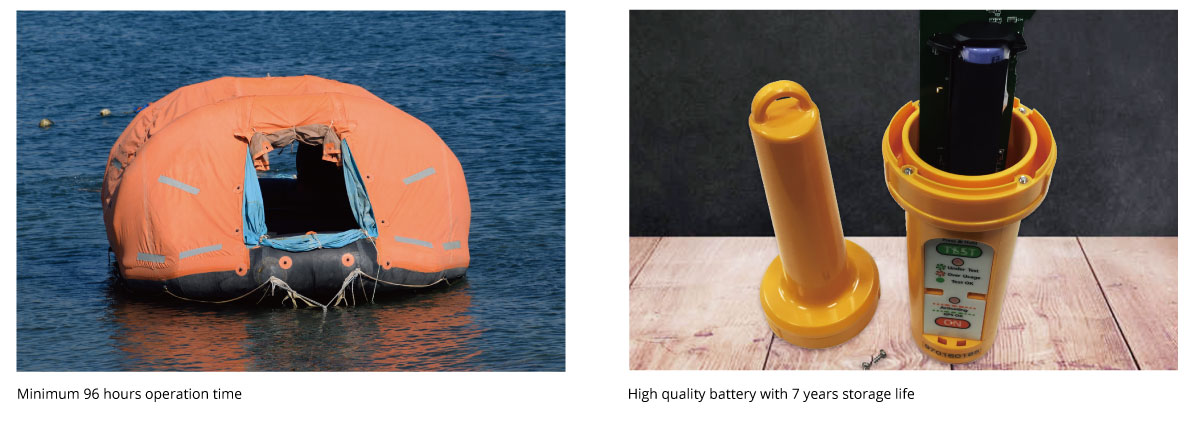

  • Minimum operating life - 96 hours

SKU Part Number：AMEC-SART500X-01X

Overview

The AMEC PLOMO-500 is an AIS Search and Rescue Transponder (SART) fully certified to IMO/Wheel-mark. Built on field proven AIS expertise, PLOMO-500 is engineered to be excellently reliable to aid the positioning in emergency – the essential way of distress recovery.



Global Certification for Quicker Rescue

Compliant with IEC 61097-14, IEC 60945 Ed.4., IMO MSC.246(83) and ITU-R M.1371-5 to ensure display integrity on ECDIS and AIS compatible plotters.


Built to Work When You Need it Most

Reliable transmission performance and antenna design for a maximum range AIS messages. The IP67 enclosure with weather and environment robustness is designed for tough marine applications.



Easy Operation and Test Procedure

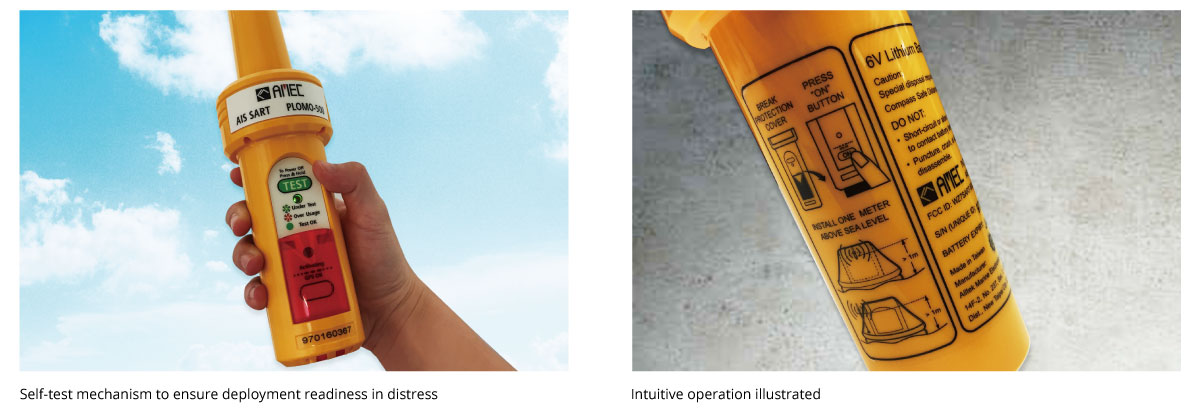

Accident proof switch and self-test function ensure a full transmission performance. Activation and test procedures are illustrated on the beacon for peace of mind in emergency.

Specification

APPLICABLE STANDARDS

IEC 61097-14 Ed. 1: 2010

IEC 60945 Ed. 4: 2002 incl. Corr. 1 (2008)

ITU–R M.1371-5: 2014

IMO Resolution MSC.246(83)

VHF TRANSMITTER

Operating Frequency

AIS 1, 161.975MHz

AIS 2, 162.025MHz

Data Rate

9,600bps

Bandwidth

25 KHz

Power Output

1W EIRP

AIS Message Type

Message 1, Message 14

Modulation

GMSK

Antenna

Integrated by PCB

GPS RECEIVER

Receiving Channels

72 channels

Acquisition Sensitivity

(-)159 dBm

Tracking Sensitivity

(-)159 dBm

Position Accuracy

< 2.5 m Autonomous & SBAS

BATTERY

Type

Primary Lithium (not rechargeable)

Operating Life

96 hours minimum

Storage

6 years

Service

Replaceable

CARRY & MOUNTING

Wall Mount

Carry Bag

ENVIRONMENTAL

Operating Temperature

-20°C~55°C

Storage Temperature

-30°C~70°C

Waterproof

Immersion to 10m

Buoyancy

Floats

Exterior Finish

Highly Visible Yellow

Operating Temperature

-20°C~55°C

Compass Safe Distance

Standard Magnetic – 0.60 m


Steering Magnetic - 0.40 m

PHYSICAL

Max Diameter (Main Body )

70 mm (2.76 inch)

Length (Main Body)

300 mm (11.81 inch)

Weight (Main Body)

283 g (Battery included)

Length (Pole)

1050 mm (41.34 inch) (Extended)

Weight (Pole)

300 g

Weight (Storage Package)

1.08 kg

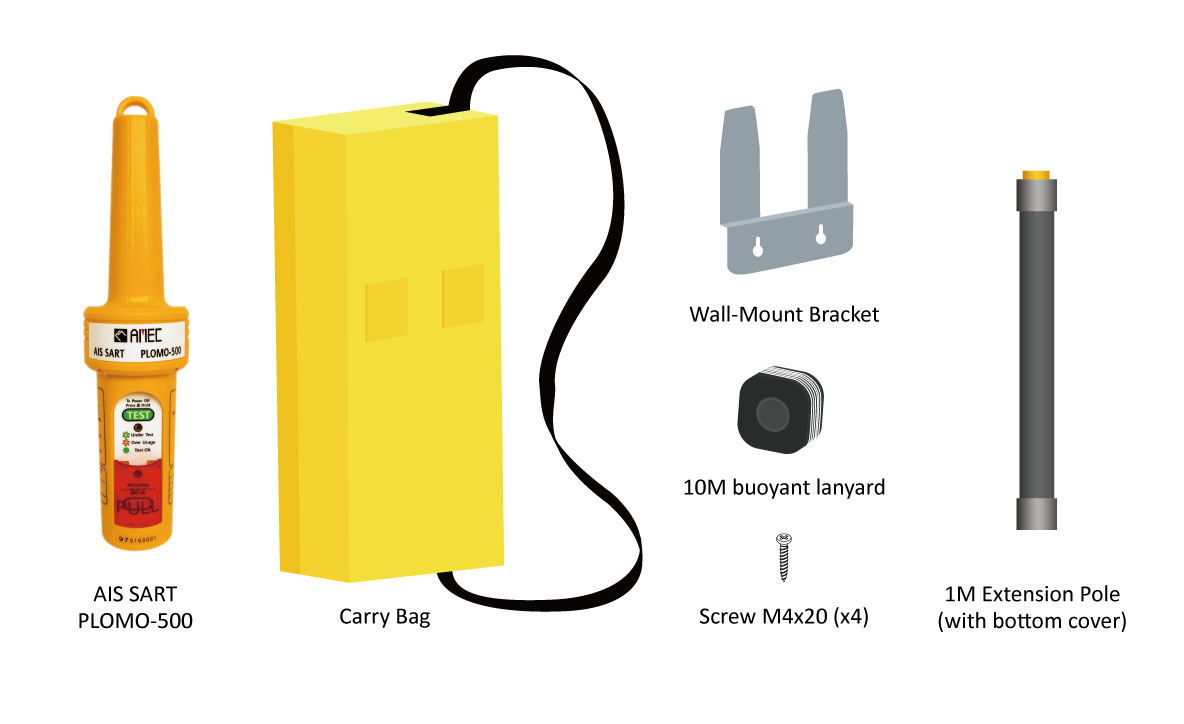

In the Box
