- Fully compliant with IALA , IEC, and ITU standards with BSH/CE/FCC/USCG approval
- Support messages 21, 6, 7, 8, 12, 13, 14, 25 (depends on hardware & software con guration)
- Support meteorological & hydrological message (Message 8)
- Support synthetic and virtual AIS AtoN
- Low power consumption & robust housing (IP68)
- Slim PCB module to integrate with lantern
- Supplied with user-friendly Windows-based con guration tool
MANDO-301
Empowering AtoN by AIS Technology!
SKU Part Number：AMEC-MDO301XX-01X
Overview
The AMEC MANDO series marks the most advanced AIS AtoN fully certified to the latest international standards. As AIS AtoN type 1, MANDO is ready to be deployed on buoys, lighthouses, oil/gas stations, offshore wind farms or navigational hazards as an aid of collision avoidance for nearby vessels.

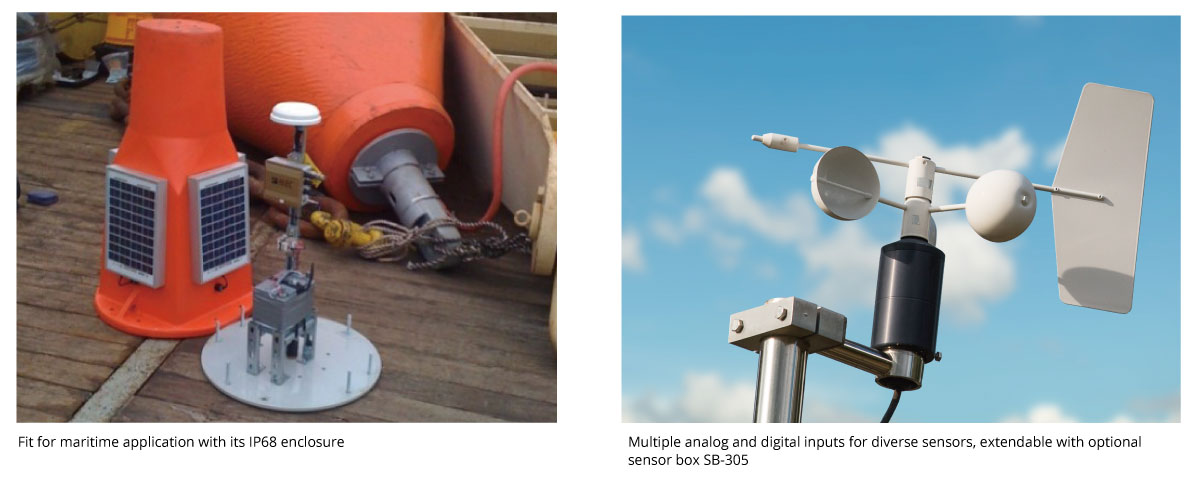

MANDO is designed to work with a variety of sensors and instruments to deliver hydrological and meteorological data for the benefit of authorities and mariners. Besides, it can be interfaced with lantern to monitor its lamp status or enable more advanced configuration options. All the features are packed in a compact and ruggedized enclosure.
High Reliability, Smart Connection

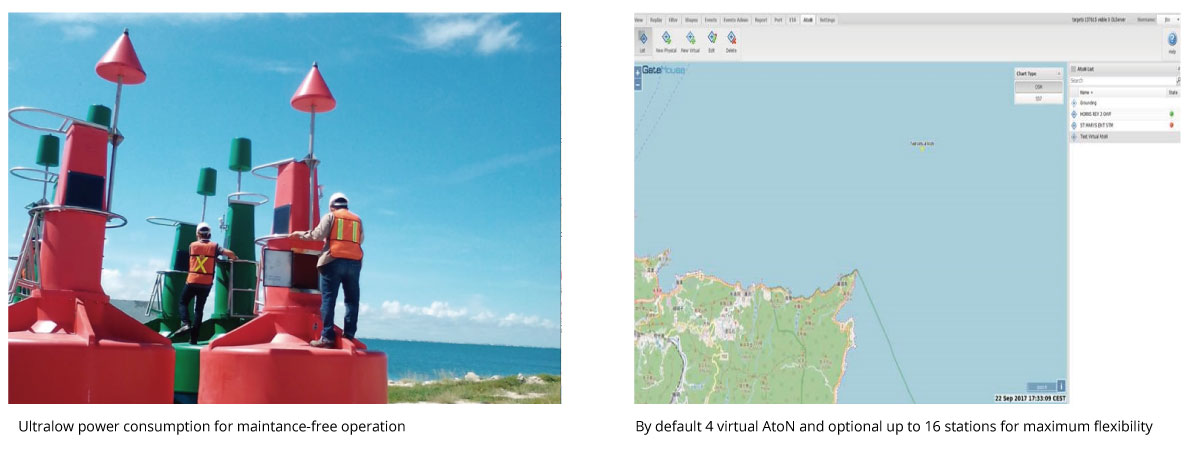

The MANDO is engineered to work continuously without maintenance in harsh marine area. To enable this, MANDO is given with its field proven AIS engine and a mechanical design compliant with rigorous vibration and environmental tests.
Most Advanced Features Unleashed
The AMEC AtoN MANDO takes advantage of the latest IEC IEC 62320-2 to unleash the whole potential of AIS AtoN.
Case Studies:

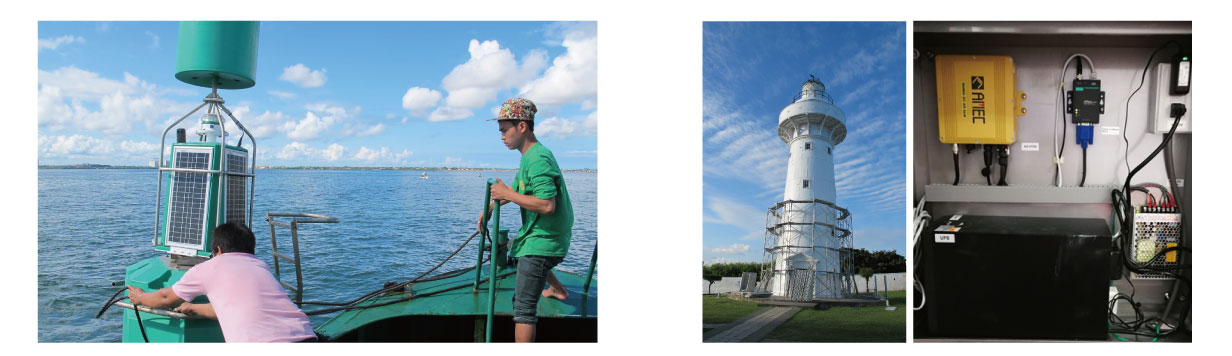

- Port and harbor: MANDO deployed in Bangkok port to aid navigation.

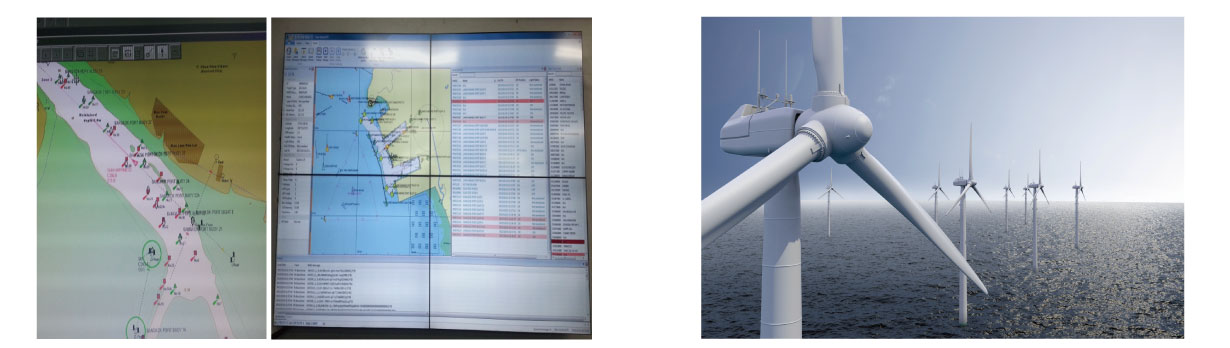

- Wind farmMANDO deployed in the wind farm project, France.
- Buoy: MANDO installed in Cebu project, Philippine
- Light house: MANDO installed on/at lighthouses, Taiwan
Specification
|
APPLICABLE STANDARDS |
||||||||||
|
ITU-R M.1371-5:2014 |
EN 62311:2008 |
|||||||||
|
IALA A-126 Ed. 1.4:2008 |
EN 301 489-1 V2.2.0:2017 |
|||||||||
|
IEC 62320-2 Ed. 2.0:2016 |
EN 301 489-19 V2.1.0:2017 |
|||||||||
|
IEC 61108-1 Ed. 2.0:2003 |
EN 301 843-1 V2.2.1:2017 |
|||||||||
|
IEC 61162-1 Ed. 5.0:2016 |
EN 301 843-2 V2.2.1:2017 |
|||||||||
|
IEC 61162-2 Ed. 1.0:1998 |
EN 303 413 V1.1.1:2017 |
|||||||||
|
IEC 60945 Ed. 4.0:2002 |
EN 62368-1:2014 + A11:2017 |
|||||||||
|
GPS RECEIVER |
||||||||||
|
Receiving Channels |
50 channels |
|||||||||
|
Tracking & Navigation Sensitivity |
≧-159 dBm |
|||||||||
|
Reacquisition Sensitivity |
≧-159 dBm |
|||||||||
|
Horizontal Position |
＜2.5 m Autonomous ＜2.0 m SBAS |
|||||||||
|
Receiver Type |
SBAS: WAAS, EGNOS MSAS, GAGAN |
|||||||||
|
TRANSMITTER PERFORMANCE |
||||||||||
|
TX Frequency Range |
156.025 MHz ~ 162.025 MHz |
|||||||||
|
Frequency Accuracy |
±500 Hz |
|||||||||
|
Channel Space |
25 KHz |
|||||||||
|
Channel Protection |
1 Sec max on air |
|||||||||
|
Modulation |
GMSK/FM |
|||||||||
|
Data Rate |
9,600 bps |
|||||||||
|
TX Power Control |
2/5/12.5 Watt (programmable) |
|||||||||
|
Carrier Power Error |
±1.5 dB (normal) |
|||||||||
|
Nominal Impedance |
50Ω |
|||||||||
|
RECEIVER PERFORMANCE (MANDO-303 only) |
||||||||||
|
Numbers of Receivers |
2 |
|||||||||
|
RX Frequency Range |
156.025MHz ~ 162.025 MHz |
|||||||||
|
Sensitivity |
PER 20% at -107 dBm |
|||||||||
|
Data Rate |
9,600 bps |
|||||||||
|
PER |
20% at -107 dBm |
|||||||||
|
Co-Channel Rejection |
10 dB at 1 KHz offset |
|||||||||
|
Adjacent Channel Rejection |
70 dB at 25 KHz |
|||||||||
|
Nominal Impedance |
50Ω |
|||||||||
|
POWER SUPPLY |
||||||||||
|
Supply Voltage |
12V DC nominal (at power connector) |
|||||||||
|
Supply Voltage Range |
9.6 ~ 15.6V DC |
|||||||||
|
POWER CONSUMPTION @ 12V DC |
||||||||||
|
MANDO-301 |
FATDMA ＜ 0.288 Ah/day * |
|||||||||
|
MANDO-303 |
FATDMA ＜ 0.432 Ah/day * RATDMA ＜ 1.656 Ah/day * |
|||||||||
|
*At 12.5W; transmission scheduled every 3 min |
||||||||||
|
Operating Conditions |
-20℃ ~ +55℃ |
|||||||||
|
Operating Temperature |
-30℃ ~ +70℃ |
|||||||||
|
Humidity |
95% relative humidity at 40℃ |
|||||||||
|
INPUT / OUTPUT |
||||||||||
|
1) One RS-232 port for configuration |
||||||||||
|
2) One RS-232 port for communication |
||||||||||
|
3) One isolated control output – N.C. relay for alarm indication (default) or other control usages |
||||||||||
|
4) One isolated status input channel with 5 mA constant current sink for external device status input (e.g. read light fault, light on/off, etc.) |
||||||||||
|
5) Four ADC channels for external sensors |
||||||||||
|
6) VHF Connector (SO-239 Female) |
||||||||||
|
7) GPS Connector (TNC Type) |
||||||||||
|
8) More extra I/O interfaces can be supplied via optional extension I/O board |
||||||||||
|
SOFTWARE TOOL |
||||||||||
|
AMEC AtoN Configuration |
PC configuration utility |
|||||||||
Download
Documents
| DESCRIPTION | UPDATE |
| Declaration of EU Conformity for MANDO-301 | 2020/12/30 |
| AIS AtoN MANDO-301 product brochure v3.3 | 2020/08/21 |
