WideLink R150GE

AIS Network Dual Channel Receiver

AMEC WideLink R150GE is an AIS receiver designed especifically for shore monitoring applications but it can also be used like a normal AIS Receiver for small commercial vessels, fishing vessels, yachts, and sailboats.



  • Sophisticated dual-channel AIS receivers
  • Field-proven exceptional performance of receive sensitivity
  • Receive all AIS information including Class A, Class B, Base Station, AtoN, SART, MOB, etc.
  • Connect to a PC or a Network via standard RJ-45 Ethernet connector
  • Connect to a chart-plotter typically via NMEA0183
  • Support variant interfaces: NMEA0183, RS232, RJ-45, USB
  • Support AC/DC power adapter to ease installation on shore station (OPTIONAL)
  • Compact size, robust aluminum housing, IP66 waterproof



SKU Part Number：AMEC-R150GE-021

Overview

AMEC WideLink R150GE is an AIS receiver designed primarily for shore-based monitoring applications, yet it can also function as a standard AIS receiver for small commercial vessels, fishing boats, yachts, and sailboats. Based on the proven performance of the CYPHO-150, the R150GE offers extensive functionality,
including an integrated GPS receiver and a wide range of connection interfaces.


Equipped with dual parallel AIS receivers, the R150GE delivers exceptional receiving sensitivity to maximize the reception range of all AIS messages. It is ideal for deployment as a shore or remote receiving station, capable of forwarding AIS data to a dedicated server or designated IP address via TCP/IP or UDP/IP
protocols.


The R150GE can also operate as a standard AIS receiver by connecting to a PC or chart plotter through USB, serial (RS-232), or NMEA 0183 interfaces. When connected to a GPS antenna, the receiver outputs AIS data along with the own-vessel’s position, speed, and course.


The unit features standard Ethernet, USB, RS-232, and NMEA 0183 interfaces for versatile connectivity

Specification

APPLICABLE STANDARDS

ITU-R M.1371

EN 62311:2008

IEC 60945 Ed.4.0:2002

EN 300328 V2.1.1

IEC 61162 (applicable parts)

EN 303413 V1.1.1

IEC 62287-1 Ed. 2.1:2017 (applicable parts)

IEC 62287-1 Ed. 2.1:2017 (applicable parts)

EN 301489-1 V2.1.1 / EN 301489-19 V2.1.0

EN 301489-1 V2.1.1 / EN 301489-17 V3.1.1

AIS RECEIVER

Number of AIS Receivers

2 channels

CH-1

Default CH 87B (161.975MHz)

CH-2

Default CH 88B (162.025MHz)

Channel Bandwidth

25KHz

Message Format

AIS Class A & B messages

Data Rate

9,600bps / per channel

AIS Receive Sensitivity

-112 dBm @ PER ≤ 20%

POWER SUPPLY

Supply Voltage

12 / 24V DC

Power Consumption

Greater than 1.5W; Less than 6W

LED INDICATION

WideLink R150GE

Power, Error, AIS Rx, GPS, Ethernet

INTERFACE

GPE Antenna Connector

TNC (Female)

VHF Antenna Connector

SO-239 (Female)

NMEA 0183 (RS-422)

Support two NMEA 0183 interfaces

Baud rate configurable  (default 38,400 bps)

Standard IEC 61162-1 / IEC 61162-2 sentences

RS-232

Female DB9

USB 2.0

Supported

Ethernet

10/100 Base-T (RJ-45 Female)

ENVIRONMENTAL

Operating Temperature

-15°C~55°C

Storage Temperature

-25°C~70°C

Humidity Operation

0~95% RH at 40°C

Vibration IEC

IEC 60945

Waterproof

IP66

PHYSICAL DIMENSIONS

Width

140 mm (5.51 inch)

Height

50 mm (1.96 inch)

Depth

108 mm (4.25 inch) (exclude connector)

Weight

450 g

Cable Length

Power Cable: 1 meter

USB/NMEA: 80 centimeters

Ethernet: 1 meter

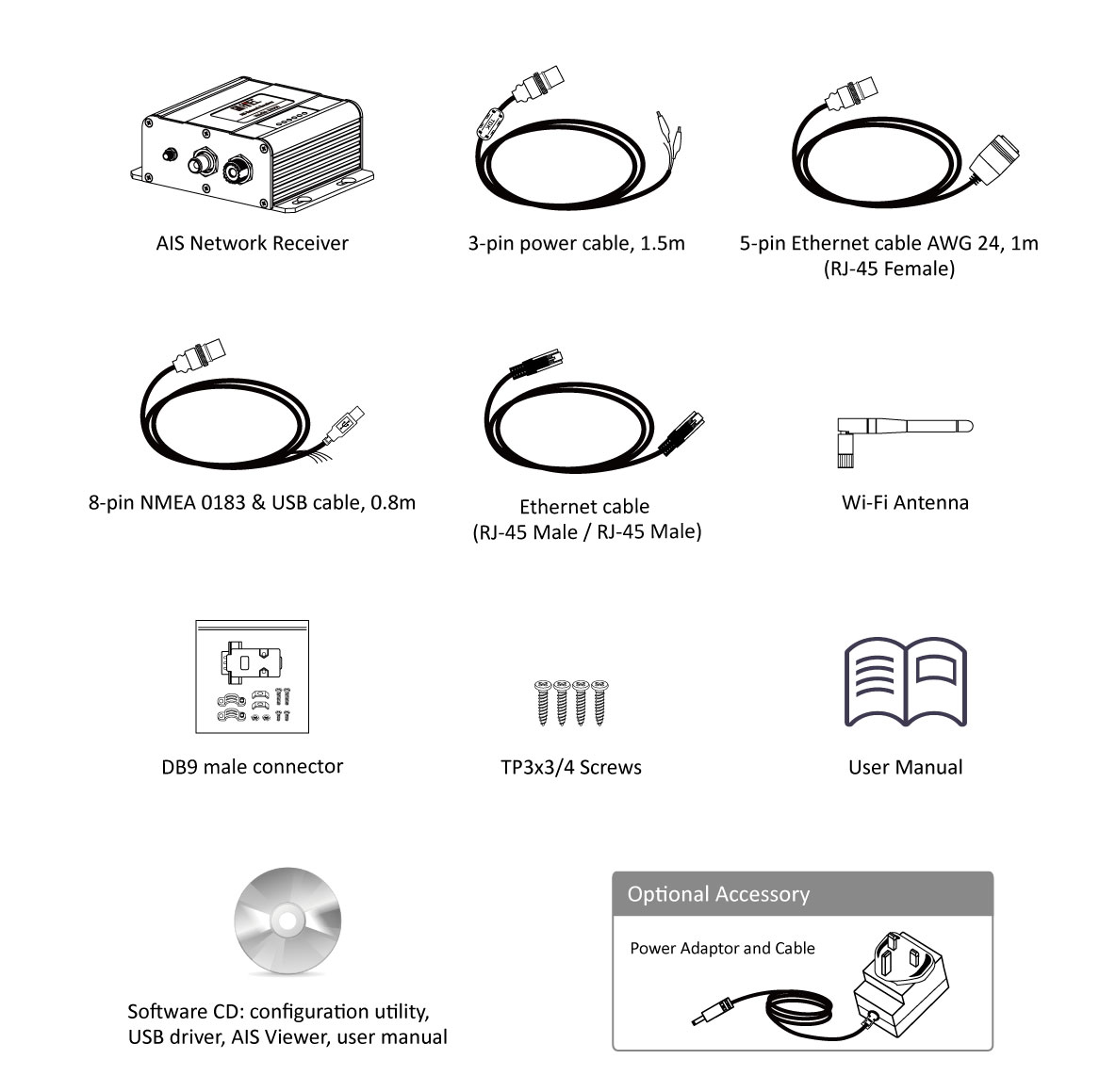

In the Box
