Our most sophisticated 5W AIS class B transceiver with integrated Wi-Fi and antenna splitter
SKU Part Number：AMEC-B650WS-010
Powered by AMEC's 3rd-gen AIS engine, the B650 series unleashes superlative AIS performance, best-in-class receiving sensitivity of -111dBm and world’s lowest power consumption.
Built-in Wi-Fi supporting Client Mode and Access Point Mode to make your phone/pad a mobile charting device.
The built-in antenna splitter allows a single VHF antenna to be shared by both the AIS and VHF radio. The high-performance antenna splitter has zero insertion loss on reception path and ultra low loss on transmission path.
B650WS incorporates NMEA 2000 to enable quick installation and interoperability with other bridge systems. Its dual NMEA 0183 ensures easy integration with legacy board devices. PC/Mac based navigation program can be connected to B650WS through its USB port.
Robust from electrical to mechanical design, built to endure for years to come.
|
APPLICABLE STANDARDS |
|
|---|---|
|
AIS performance |
IEC 62287-1 Ed. 3.0 (2017-04) |
|
GNSS performance |
IEC 61108-1 Ed. 2.0 (2003-07) |
|
Serial data interface |
IEC 61162-1 Ed. 6.0 (2024-04) IEC 61162-2 Ed. 2.0 (2024-04) |
|
NMEA 2000 |
NMEA 2000 Version 3.0 (2022-03) |
|
Environmental |
IEC 60945 Ed. 4.0 (2002-08) incl. Cor. 1 (2008-04) |
|
Product safety |
IEC 62368-1 Ed. 4.0 (2023-05) EN 62311 Ed. 2.0 (2020-01) |
|

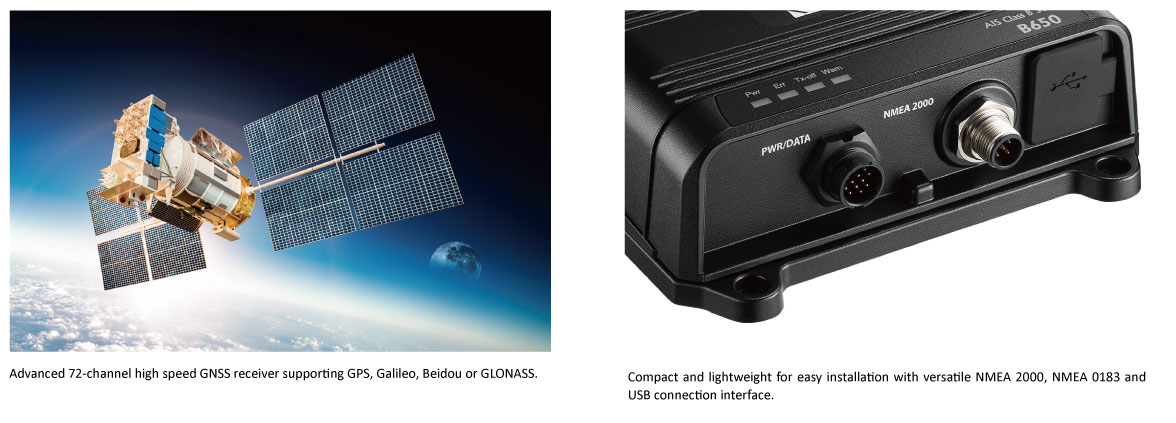

GNSS RECEIVER (INTEGRATED) |
|
|
Receiving channels |
72 channels |
|
Time to first fix from cold start |
30 s |
|
Horizontal position |
2.5 m |
|
GNSS support |
GPS, Galileo, BeiDou, GLONASS |
| VHF TRANSCEIVER | |
|
VDL access scheme |
SOTDMA |
|
Frequency range |
156.025 MHz ~ 162.025 MHz |
|
Channel bandwidth |
25 KHz |
|
Receivers / transmitters |
2 x receivers, 1 x transmitter |
|
AIS transmit power |
5 Watt (37 dBm ± 1.5 dB) 1 Watt (30 dBm ± 1.5 dB) |
|
AIS receive sensitivity |
< -111 dBm @ 20 % PER |
| DSC RECEIVER | |
|
Modulation |
1,300 Hz / 2,100 Hz FSK |
|
Data rate |
1,200 bps ± 30 ppm |
|
Spurious response rejection |
≧ 70 dB for signal @ -104 dBm; BER ≦ 1 % |
|
Blocking |
≧ 84 dB for signal @ -104 dBm; BER ≦ 1 % |
| USER INTERFACE | |
| Indicators |
Power, Error, Tx-off, Warn, VHF Tx |
| POWER SUPPLY | |
|
Supply voltage |
12 V / 24 V DC |
|
Supply voltage range |
9.6 V ~ 31.2 V DC |
|
Average current (at 12 V) |
160 mA |
|
Peak current (at 12 V) |
1.8 A |
|
Galvanic isolation |
NMEA 0183 inputs only NMEA 2000 |
| EXTERNAL CONNECTORS | |
|
VHF antenna |
SO-239 |
|
VHF radio |
SO-239 |
|
GNSS |
TNC |
|
Power & data connections |
12 way circular multipole |
|
NMEA 2000 |
5 way Micro-C connector |
|
USB |
USB type-C connector |
| CONNECTION INTERFACE | |
|
NMEA 0183 |
2 x bi-directional ports |
|
NMEA 2000 |
NMEA 2000 Version 3.0, LEN=1 |
|
USB |
PC virtual com port for NMEA 0183 data |
|
Wireless (Wi-Fi) connection (2 connections in access point mode) |
IEEE 802.11 b/g/n |
| PHYSICAL & ENVIRONMENTAL | |
|
Size (H x W x D) |
151.22 x 128.57 x 49.87 mm |
|
Weight |
400 g |
|
Operating temperature |
-25 °C ~ +55 °C |
|

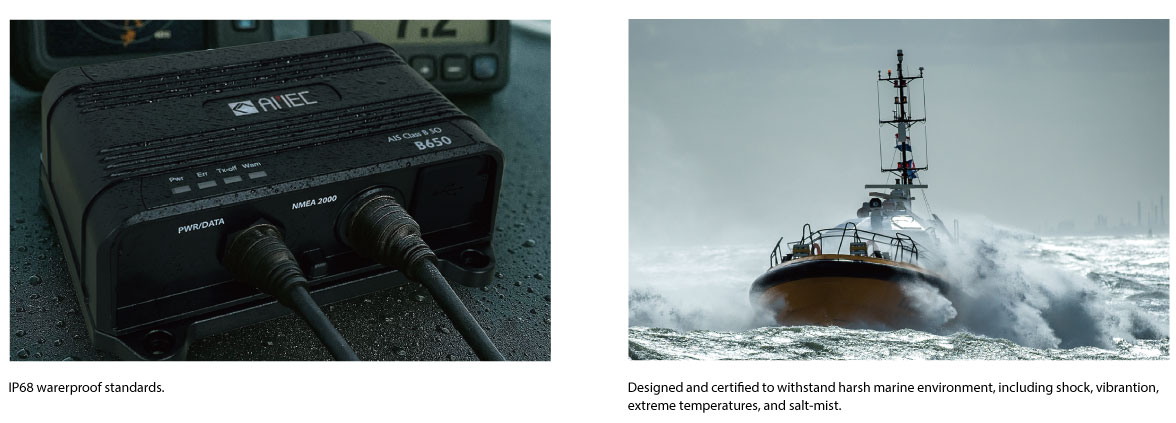

Waterproof and dust resistant |
IP68 |
| Wi-Fi CHARACTERISTICS | |
|
Wi-Fi transmit power |
≦20 dBm (EIRP) |
|
Frequency range |
2,412 MHz ~ 2,472 MHz |
|
Antenna gain |
2.94 dBi |
