Applications
- Vital Sensing
- Baby Monitor
- Patient Monitoring, Elder Care, Enheanced Nursing Efficiency
- Driver Monitoring
Vital Sensing Algorithm
Applications
SKU Part Number:AMEC-R60B-211

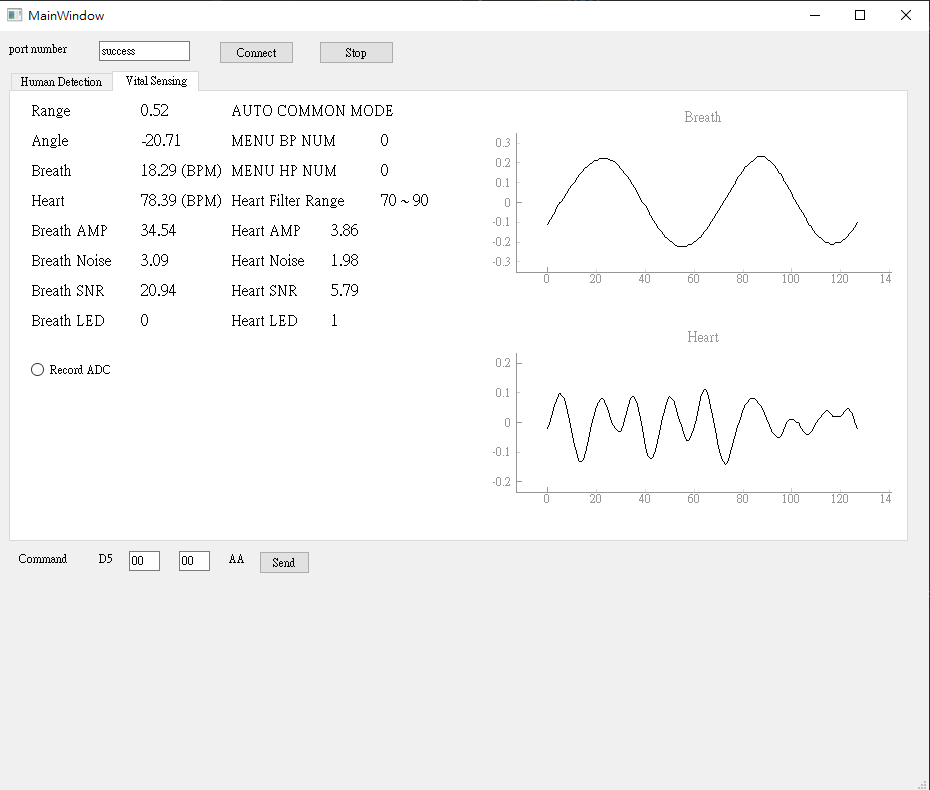

Graphic User Interface
The GUI allow user to config the radar module for the specific user’s requirement, and also provides an interface to learn how to use the command set in visualize graphic. Base on the radar command set, the GUI shows the radar configuration, real time status and the results.
The information are including:
Range, angle of target
Filter Mode
Detection results of Respiration and Heart Beat
Respiration and Heart Beat waveform
GENERAL SPECIFICATIONS |
|
---|---|
Frequency Band |
60.0 ~ 61.0GHz |
Modulation |
FMCW |
Radiation Power |
4dBm/Typ, 8dBm/Max |
Max./Min. Detection Range |
6m |
Range Accuracy |
15cm |
Antenna Beam width - Horizontal/Vertical |
65° / 35° |
Voltage Range |
5V±10% |
Power Consumption |
TBD |
Interface |
USB/UART, GPIO |
Ambient Operating Temp. |
-20℃ to +70℃ |
PHYSICAL |
|
Length |
25 mm (0.98 inches) |
Width |
15 mm (0.59 inches) |
Height |
3.3 mm (013 inches) |
Weight |
1.3 g |
